Grooved Fittings: Application and Selection Guide

Grooved fittings, commonly used in modern piping systems, are known for their simple installation, strong reliability, and wide adaptability. These fittings have become an essential part of many industries, including construction, fire protection, and HVAC systems. This article will provide an in-depth look at the concept of grooved fittings, their areas of application, and how to select the right ones for your projects.

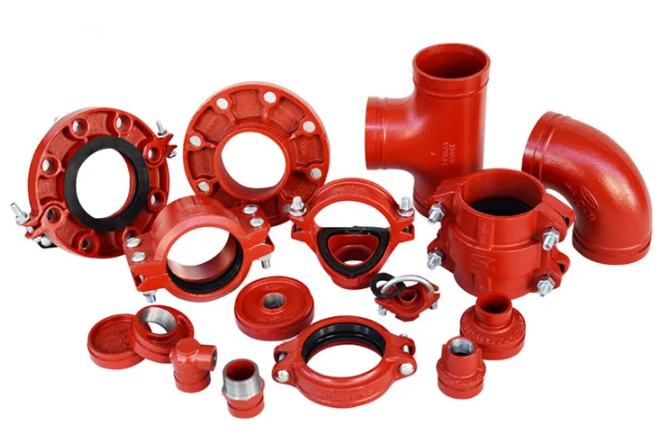

What Are Grooved Fittings?

Grooved fittings are components used to connect pipes by utilizing grooves on the pipe and corresponding fittings. They are typically used with steel or cast iron pipes. Unlike traditional welded fittings, grooved fittings use mechanical methods or rubber sealing rings to connect pipes, eliminating the need for high-temperature welding, thus improving safety and increasing installation efficiency.

Main Features of Grooved Fittings

1. Easy Installation: Grooved fittings are connected through mechanical means or rubber sealing rings, avoiding the high-temperature operations involved in welding. This reduces both installation time and risks.

2. Good Seismic Performance: Due to their unique connection method, grooved fittings are able to better handle vibrations and pressure changes, making them ideal for use in environments subject to frequent movement or high pressure.

3. Cost-Effective: With faster installation and easier maintenance, grooved fittings can help reduce the overall cost of pipeline systems.

4. Flexible Pipe Adjustment and Disassembly: Grooved fittings offer an easy way to adjust or disassemble pipelines, making them suitable for systems that require regular maintenance or expansion.

Applications of Grooved Fittings

Grooved fittings are used in a wide range of industries, with particular strengths in the following areas:

1. Fire Protection Systems: Grooved fittings are widely used in fire protection water supply systems to ensure smooth water flow and the efficient operation of fire extinguishing systems.

2. Building Water Supply and Drainage Systems: Grooved fittings are commonly used in residential, commercial, and industrial water supply and drainage systems, especially in applications that require quick installation and easy future maintenance.

3. HVAC (Heating, Ventilation, and Air Conditioning) Systems: Grooved fittings are often used in cold and hot water pipelines for HVAC systems, especially in large building projects with complex piping arrangements.

4. Industrial Pipelines: Grooved fittings are also a popular choice in industries such as oil, chemicals, and power generation, where their corrosion resistance and stability are crucial.

How to Choose the Right Grooved Fittings

When selecting grooved fittings, besides considering the pipe material and diameter, it's important to keep the following key factors in mind:

1. Working Environment of the Pipeline System: If the pipeline will operate in high-temperature or high-pressure environments, it is important to choose grooved fittings made from heat-resistant and corrosion-resistant materials.

2. Matching Pipe Diameter with Grooved Fittings: Ensure that the diameter of the pipe matches the specifications of the grooved fittings, as this is crucial for ensuring a secure and leak-proof connection.

3. Sealing Performance: The sealing performance of grooved fittings directly impacts the safety of the pipeline system. Choose fittings with high-quality sealing to prevent leakage issues.

4. Quality Certifications: Opt for grooved fittings that meet industry standards and certifications to ensure their safety, reliability, and long-term performance.

Shanghai Qiaoning Industrial Co., Ltd. Product Advantages

As a provider of pipeline system solutions, Shanghai Qiaoning Industrial Co., Ltd. has extensive experience in the field of grooved fittings. The company offers high-quality grooved fittings suitable for various pipeline system needs, covering areas such as fire protection, water supply, HVAC, and more. With years of industry experience and a commitment to providing top-quality products, Shanghai Qiaoning Industrial Co., Ltd. has become a trusted partner for many projects and clients.

The grooved fittings offered by the company are made from high-strength materials, ensuring the durability and safety of the pipeline system. In addition, Shanghai Qiaoning Industrial Co., Ltd. provides comprehensive technical support, helping clients choose the most suitable fittings and system solutions for their needs.

Conclusion

Grooved fittings, with their easy installation, excellent seismic performance, and cost-effectiveness, have become an integral part of modern pipeline systems. Whether in fire protection systems, building water supply, HVAC, or industrial pipelines, grooved fittings offer significant advantages. By understanding the application and selection criteria of grooved fittings, you can make more informed decisions for your projects.

If you would like more information or a quote for grooved fittings or pipeline systems, feel free to contact us. We are committed to providing professional advice and high-quality product support.
